一，背景
CFS 文件存储支持 NFS v3.0 及 NFS v4.0 协议， 其中 NFS v3.0 是 NFS 协议较早期版本，兼容 Windows 客户端；NFS v4.0 协议为稍后期版本，支持文件锁等功能
在大量小文件或者大小文件混合场景下，用户在 容器 TKE 或者云服务器 CVM 等客户端使用 NFS v4.0 协议挂载 CFS 文件系统，可能在应用运行一段时候后出现：客户端负载居高不下，无限累加，业务读取数据慢或无响应，但是业务进程的 CPU 使用率并不是很高的情况。
二，优化
如果业务应用存在大量小文件的场景，或者并发操作文件数量巨大，推荐客户端使用 NFS v3.0 协议挂载。以下为规避大量小文件及大并发请求下客户端高负载的问题的方法
三，部署安装
方式一： NFS 4.0 挂载根目录
apiVersion: storage.k8s.io/v1
kind: StorageClass
name: cfs
parameters:
pgroupid: pgroup-g6hwk27v
storagetype: SD
subnetid: subnet-ge8hhr3e
vpcid: vpc-bkoyzvar
zone: ap-chongqing-1
provisioner: com.tencent.cloud.csi.cfs
reclaimPolicy: Delete
volumeBindingMode: Immediate
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: cfs-pv-root
spec:
accessModes:
- ReadWriteMany
capacity:
storage: 10Gi
csi:
driver: com.tencent.cloud.csi.cfs
volumeAttributes:
host: 192.168.1.6
path: /
volumeHandle: cfs-pv-root
persistentVolumeReclaimPolicy: Retain
storageClassName: cfs
volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: cfs-pvc-root
namespace: storage
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
storageClassName: cfs
volumeMode: Filesystem
volumeName: cfs-pv-root
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
k8s-app: centos-cfs-root
qcloud-app: centos-cfs-root
name: centos-cfs-root
namespace: storage
spec:
replicas: 1
selector:
matchLabels:
k8s-app: centos-cfs-root
qcloud-app: centos-cfs-root
template:
metadata:
labels:
k8s-app: centos-cfs-root
qcloud-app: centos-cfs-root
spec:
containers:
- env:
- name: PATH
value: /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
image: ccr.ccs.tencentyun.com/v_cjweichen/centos:v3
imagePullPolicy: Always
name: centos
resources:
limits:
cpu: 100m
memory: 64Mi
requests:
cpu: 100m
memory: 64Mi
securityContext:
privileged: false
volumeMounts:
- mountPath: /mnt
name: cfs-vol
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: qcloudregistrykey
restartPolicy: Always
volumes:
- name: cfs-vol
persistentVolumeClaim:
claimName: cfs-pvc-root
创建：
[root@VM-0-17-tlinux ~]# kubectl apply -f centos-pvc-cfs.yaml
persistentvolume/cfs-pv-root created
persistentvolumeclaim/cfs-pvc-root created
deployment.apps/centos-cfs-root created
[root@VM-0-17-tlinux ~]#
[root@VM-0-17-tlinux ~]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
cfs-pv-root 10Gi RWX Retain Bound storage/cfs-pvc-root cfs 14s
[root@VM-0-17-tlinux ~]# kubectl get pvc -n storage
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
cfs-pvc-root Bound cfs-pv-root 10Gi RWX cfs 29s
[root@VM-0-17-tlinux ~]# kubectl get pod -n storage
NAME READY STATUS RESTARTS AGE
centos-cfs-root-6955f4656f-t4bhp 1/1 Running 0 35s

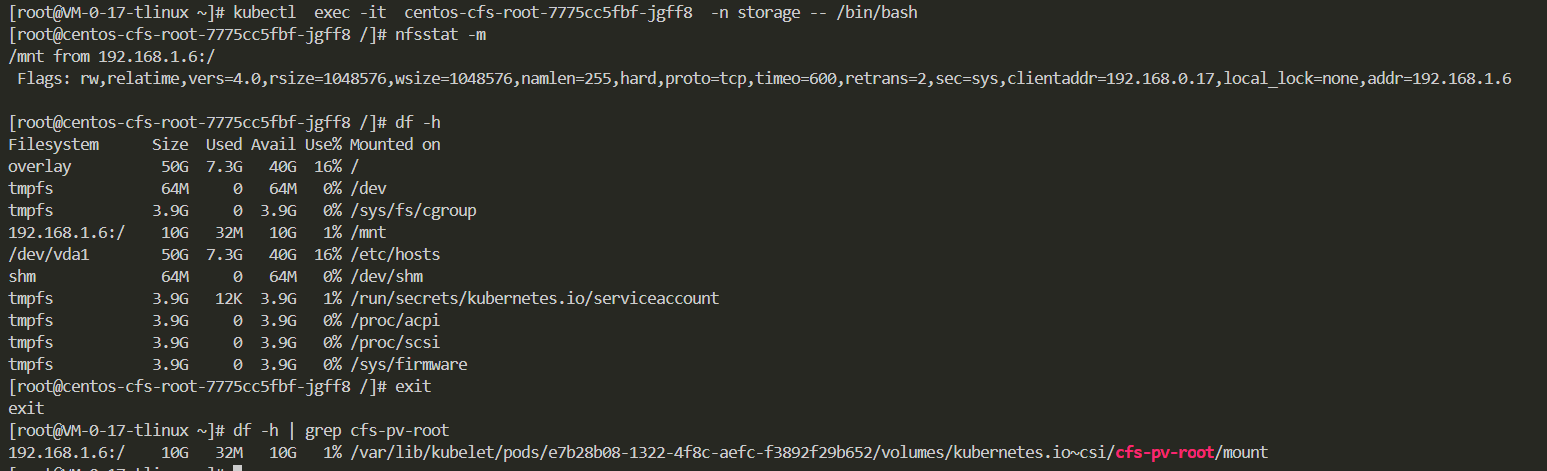

查看挂载情况
pod内：
[root@centos-cfs-root-7775cc5fbf-jgff8 /]# nfsstat -m
/mnt from 192.168.1.6:/
Flags: rw,relatime,vers=4.0,rsize=1048576,wsize=1048576,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=192.168.0.17,local_lock=none,addr=192.168.1.6
[root@centos-cfs-root-7775cc5fbf-jgff8 /]# df -h
Filesystem Size Used Avail Use% Mounted on
overlay 50G 7.3G 40G 16% /
tmpfs 64M 0 64M 0% /dev
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
192.168.1.6:/ 10G 32M 10G 1% /mnt
node节点上对应的命令如下：
[root@VM-0-17-tlinux ~]# df -h | grep cfs-pv-root
192.168.1.6:/ 10G 32M 10G 1% /var/lib/kubelet/pods/e7b28b08-1322-4f8c-aefc-f3892f29b652/volumes/kubernetes.io~csi/cfs-pv-root/mount
方式二 TKE POD 使用 NFS 3.0 挂载子目录
唯一不同点是 其中挂载参数要写在volumeAttributes：
示例：
apiVersion: v1
kind: PersistentVolume
metadata:
name: cfs-pv-root
spec:
accessModes:
- ReadWriteMany
capacity:
storage: 10Gi
csi:
driver: com.tencent.cloud.csi.cfs
volumeAttributes:
host: 192.168.1.6
path: /bbs2yahv ##这个目录 必须是CFS那边给的目录 自建目录不行
vers: "3" ##在这里声明NFSV3协议挂载，注意双引号
volumeHandle: cfs-pv-root
persistentVolumeReclaimPolicy: Retain
storageClassName: cfs
volumeMode: Filesystem
总结来说 用v3挂载一定要加上fsid，在本文中对应为bbs2yahv，具体的还得参照你cfs中对应的fsid
[root@centos-cfs-root-6955f4656f-2blh4 /]# nfsstat -m
/mnt from 192.168.1.6://bbs2yahv
Flags: rw,relatime,vers=3,rsize=1048576,wsize=1048576,namlen=255,hard,nolock,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=192.168.1.6,mountvers=3,mountport=892,mountproto=tcp,local_lock=all,addr=192.168.1.6
https://github.com/TencentCloud/kubernetes-csi-tencentcloud/blob/master/docs/README_CFS.md
四，权限
1，目录权限

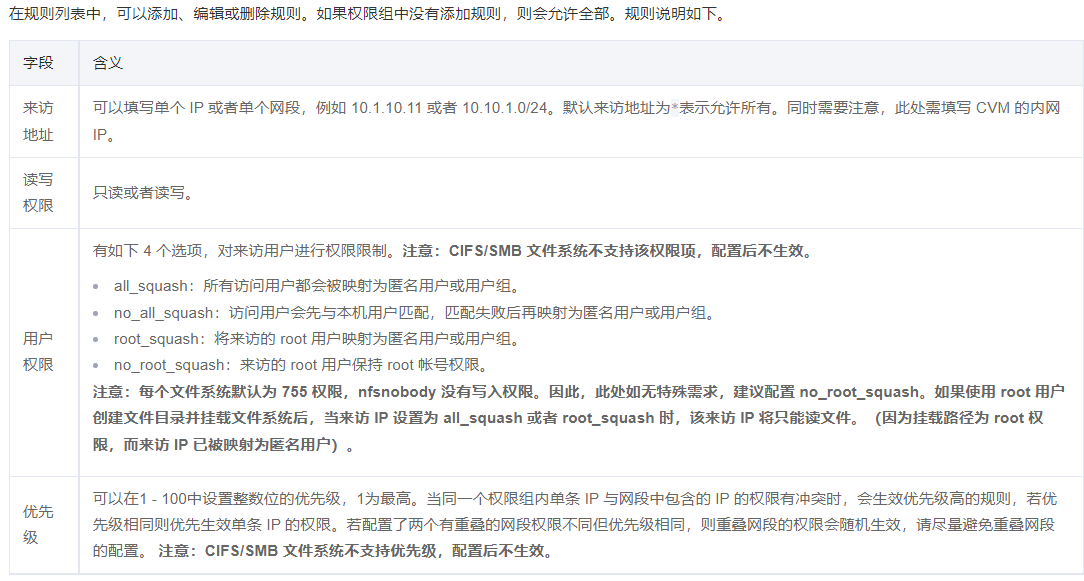

cfs挂载目录权限 是由CFS那边权限组设置
使用说明：
all_squash：所有访问用户都会被映射为匿名用户或用户组；
no_all_squash：访问用户会先与本机用户匹配，匹配失败后再映射为匿名用户或用户组；
root_squash：将来访的root用户映射为匿名用户或用户组；
no_root_squash：来访的root用户保持root帐号权限 （默认是这个）
使用：no_root_squash这个权限 普通用户没有权限写 只有读的权限
[chen@centos-cfs-root-6955f4656f-pvnxs mnt]$ cat 1111.txt
hello.txt
[chen@centos-cfs-root-6955f4656f-pvnxs mnt]$ ls -lrt
total 4
drwxr-xr-x 2 root root 6 Jul 17 16:06 1111
-rw-r--r-- 1 root root 10 Jul 17 16:08 1111.txt
[chen@centos-cfs-root-6955f4656f-pvnxs mnt]$ echo 1111 >> 1111.txt
-bash: 1111.txt: Permission denied
[chen@centos-cfs-root-6955f4656f-pvnxs mnt]$ mkdir data
mkdir: cannot create directory 'data': Permission denied
[chen@centos-cfs-root-6955f4656f-pvnxs mnt]$ cd 1111
[chen@centos-cfs-root-6955f4656f-pvnxs 1111]$ ls
[chen@centos-cfs-root-6955f4656f-pvnxs 1111]$ mkdr 111
五，部署mysql使用CFS存储
前置条件
1，创建CFS实例
2，权限组 来访地址： 用户权限是：no_root_squash *读写权限：读写

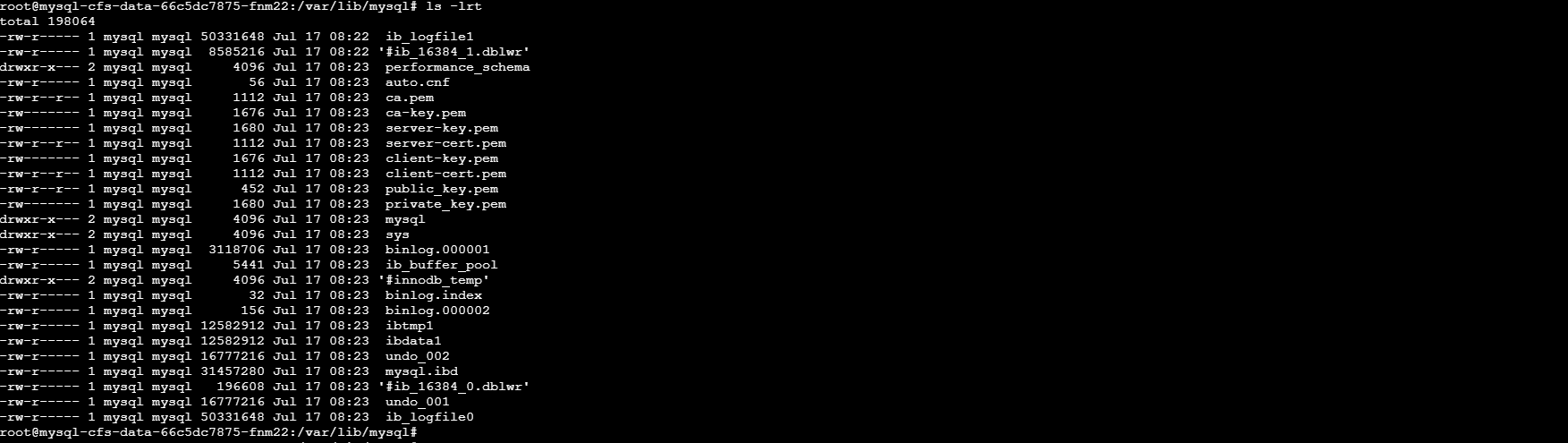

/var/lib/mysql 目录下的文件属性 都是mysql
root@mysql-cfs-data-66c5dc7875-fnm22:/var/lib/mysql# pwd
/var/lib/mysql
root@mysql-cfs-data-66c5dc7875-fnm22:/var/lib/mysql# ls -lrt
total 198064
-rw-r----- 1 mysql mysql 50331648 Jul 17 08:22 ib_logfile1
-rw-r----- 1 mysql mysql 8585216 Jul 17 08:22 '#ib_16384_1.dblwr'
drwxr-x--- 2 mysql mysql 4096 Jul 17 08:23 performance_schema
root@mysql-cfs-data-66c5dc7875-fnm22:/var/lib/mysql# id mysql
uid=999(mysql) gid=999(mysql) groups=999(mysql）

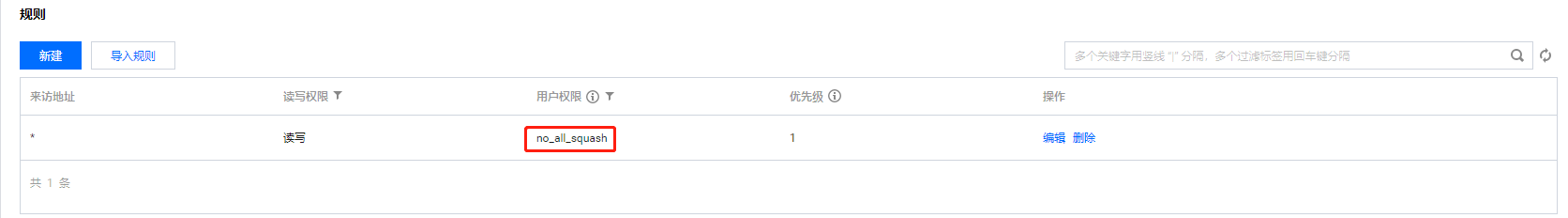

需要将文件系统的权限组修改成 no_all_squash 访问用户会先与本机用户匹配，匹配失败后再映射为匿名用户或用户组；
yaml文件：
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
k8s-app: mysql-cfs-data
qcloud-app: mysql-cfs-data
name: mysql-cfs-data
namespace: storage
spec:
replicas: 1
selector:
matchLabels:
k8s-app: mysql-cfs-data
qcloud-app: mysql-cfs-data
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
type: RollingUpdate
template:
metadata:
creationTimestamp: null
labels:
k8s-app: mysql-cfs-data
qcloud-app: mysql-cfs-data
spec:
containers:
- env:
- name: MYSQL_ROOT_PASSWORD
value: "123456"
image: mysql:5.7.16
imagePullPolicy: IfNotPresent
name: mysql
resources:
limits:
cpu: 500m
memory: 1Gi
requests:
cpu: 100m
memory: 64Mi
securityContext:
privileged: false
volumeMounts:
- mountPath: /var/lib/mysql
name: mysql-vol
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: qcloudregistrykey
restartPolicy: Always
volumes:
- name: mysql-vol
persistentVolumeClaim:
claimName: cfs-pvc-root
---
##内网型CLB
apiVersion: v1
kind: Service
metadata:
annotations:
service.kubernetes.io/qcloud-loadbalancer-internal-subnetid: subnet-ge8hhr3e
name: mysql-cfs-data
namespace: storage
spec:
externalTrafficPolicy: Cluster
ports:
- name: 3306-3306-tcp
nodePort: 31761
port: 3306
protocol: TCP
targetPort: 3306
selector:
k8s-app: mysql-cfs-data
qcloud-app: mysql-cfs-data
sessionAffinity: None
type: LoadBalancer
查看部署结果
root@mysql-cfs-data-b58fc4767-7lzqp:/var/lib/mysql# df -h | grep /var
192.168.1.6:/111 10G 241M 9.8G 3% /var/lib/mysql
root@mysql-cfs-data-b58fc4767-7lzqp:/var/lib/mysql# ls -lt
total 188452
drwxr-x--- 2 mysql mysql 19 Jul 17 09:28 chen
-rw-r----- 1 mysql mysql 12582912 Jul 17 09:26 ibtmp1
-rw-r----- 1 mysql mysql 50331648 Jul 17 09:25 ib_logfile0
-rw-r----- 1 mysql mysql 79691776 Jul 17 09:25 ibdata1
-rw-r----- 1 mysql mysql 1325 Jul 17 09:25 ib_buffer_pool
drwxr-x--- 2 mysql mysql 8192 Jul 17 09:25 sys
drwxr-x--- 2 mysql mysql 4096 Jul 17 09:25 mysql
drwxr-x--- 2 mysql mysql 8192 Jul 17 09:25 performance_schema
-rw-r----- 1 mysql mysql 56 Jul 17 09:25 auto.cnf
-rw-r----- 1 mysql mysql 50331648 Jul 17 09:25 ib_logfile1

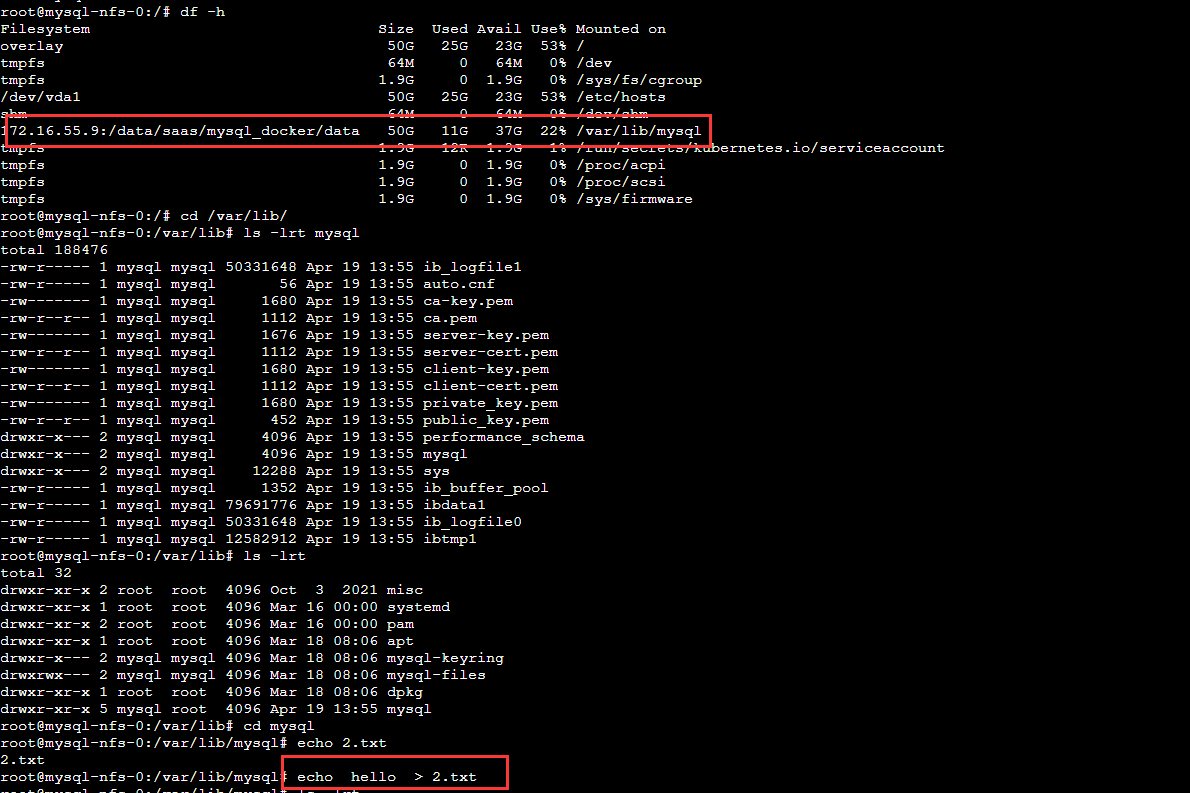

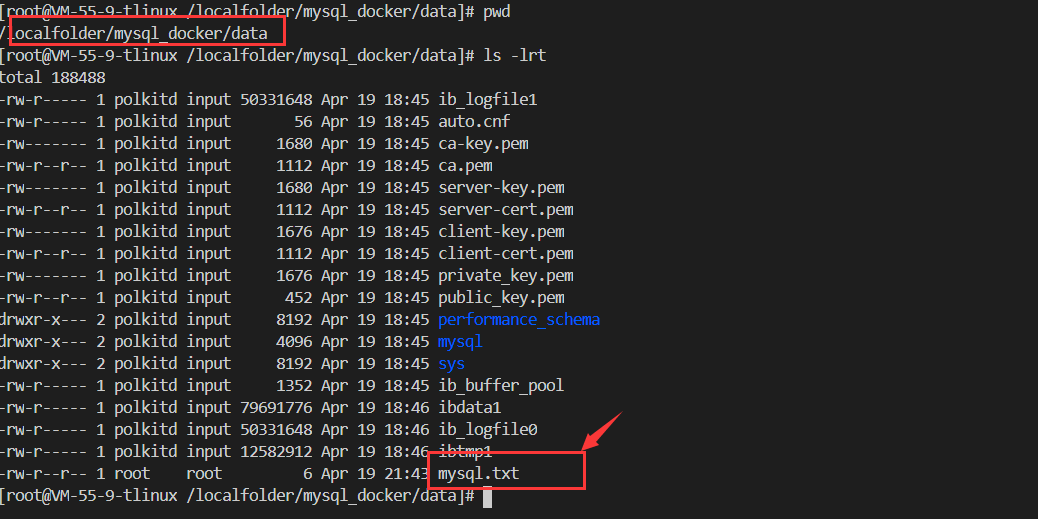

StatefulSet方式部署：
apiVersion: apps/v1
kind: StatefulSet
metadata:
labels:
k8s-app: mysql
qcloud-app: mysql
name: mysql
namespace: cjweichen
spec:
replicas: 1
selector:
matchLabels:
k8s-app: mysql
qcloud-app: mysql
serviceName: ""
template:
metadata:
labels:
k8s-app: mysql
qcloud-app: mysql
spec:
containers:
- env:
- name: MYSQL_ROOT_PASSWORD
value: "123456"
image: mysql:5.7
imagePullPolicy: IfNotPresent
name: mysql
resources: {}
volumeMounts:
- mountPath: /var/lib/mysql
name: nfs
subPath: mysql_docker/data
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: qcloudregistrykey
volumes:
- name: nfs
nfs:
path: /
server: 172.16.3.7

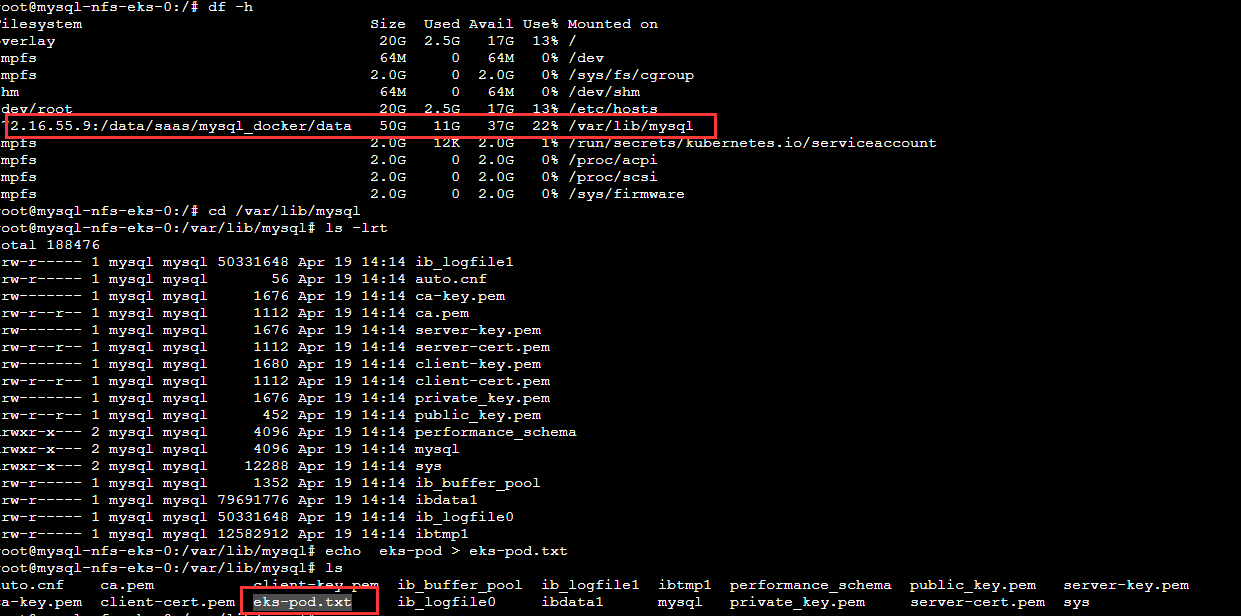

六，弹性集群EKS使用 NFS 3.0 挂载子目录
目前控制台没有CFS相关存储组件，可以创建静态CFS pv ,然后静态PVC绑定，以下是nfs 3.0协议挂载
apiVersion: v1
kind: PersistentVolume
metadata:
name: cfs-pv
spec:
mountOptions:
- vers=3
- nolock
- proto=tcp
- noresvport
accessModes:
- ReadWriteMany
capacity:
storage: 10Gi
nfs:
server: 10.2.2.66 ########cfs地址，需确保网络能通
path: /vshm4707 ########cfs侧拿到的路径
persistentVolumeReclaimPolicy: Retain
volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: cfs-pvc
namespace: default
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
storageClassName: ""
volumeMode: Filesystem
volumeName: cfs-pv
---
apiVersion: apps/v1beta2
kind: Deployment
metadata:
labels:
k8s-app: centos-cfs
qcloud-app: centos-cfs
name: centos-cfs
namespace: default
spec:
progressDeadlineSeconds: 600
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: centos-cfs
qcloud-app: centos-cfs
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
type: RollingUpdate
template:
metadata:
annotations:
eks.tke.cloud.tencent.com/security-group-id: sg-7ad888n4
labels:
k8s-app: centos-cfs
qcloud-app: centos-cfs
spec:
containers:
- env:
- name: PATH
value: /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
image: ccr.ccs.tencentyun.com/v_cjweichen/centos:latest
imagePullPolicy: Always
name: centos
resources:
limits:
cpu: 500m
memory: 1Gi
requests:
cpu: 100m
memory: 64Mi
volumeMounts:
- mountPath: /mnt
name: cfs-vol
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: qcloudregistrykey
volumes:
- name: cfs-vol
persistentVolumeClaim:
claimName: cfs-pvc
参考官方文档
https://kubernetes.io/zh/docs/concepts/storage/persistent-volumes/
七，跨云联网挂载CFS
目前TKE使用PVC和PV创建CFS，只能选择当前VPC下的CFS实例。有时用户有诉求，想挂载其他VPC下的CFS实例可以参考如下:
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-ccn
spec:
accessModes:
- ReadWriteMany
capacity:
storage: 10Gi
csi:
driver: com.tencent.cloud.csi.cfs
volumeAttributes:
host: 10.2.2.66
path: /
volumeHandle: cfs-pv2
persistentVolumeReclaimPolicy: Retain
volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-operationdata
namespace: default
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
storageClassName: ""
volumeMode: Filesystem
volumeName: pv-operationdata
[root@tke-node /data]# kubectl exec -it nginx-d98d55878-445cv bash
root@nginx-d98d55878-445cv:/# df -h
Filesystem Size Used Avail Use% Mounted on
overlay 50G 7.8G 39G 17% /
tmpfs 64M 0 64M 0% /dev
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
10.2.2.66:/ 10G 32M 10G 1% /mnt
/dev/vda1 50G 9.6G 38G 21% /etc/hosts
/dev/vdb 50G 7.8G 39G 17% /etc/hostname
shm 64M 0 64M 0% /dev/shm
tmpfs 3.9G 12K 3.9G 1% /run/secrets/kubernetes.io/serviceaccount
tmpfs 3.9G 0 3.9G 0% /proc/acpi
tmpfs 3.9G 0 3.9G 0% /proc/scsi
tmpfs 3.9G 0 3.9G 0% /sys/firmware
root@nginx-d98d55878-445cv:/# cd /mnt/
root@nginx-d98d55878-445cv:/mnt# ls
123 aa bb data etc vshm4707
八，CFS V3挂载示例
小文件及高并发场景下客户端使用卡顿是已知问题
https://cloud.tencent.com/document/product/582/46359
apiVersion: v1
kind: PersistentVolume
metadata:
name: cfs-pv
spec:
mountOptions:
- vers=3
- nolock
- proto=tcp
- noresvport
accessModes:
- ReadWriteMany
capacity:
storage: 10Gi
nfs:
server: 10.0.0.11
path: /mu3qj5m4
persistentVolumeReclaimPolicy: Retain
volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: cfs-pvc
namespace: default
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
storageClassName: ""
volumeMode: Filesystem
volumeName: cfs-pv
九，CFS 动态创建不同子目录的 PVC
参考：https://github.com/kubernetes-sigs/nfs-subdir-external-provisioner
https://cloud.tencent.com/developer/article/1839599
使用场景
目前TKE 使用 StorageClass 自动创建 CFS 类型 PVC 和 PV，每个 PV 都需要对应一个文件系统（CFS 实例），如果想要多个 PV（不同子路径） 使用同一个文件系统，就需要手动创建 PV 时指定 CFS 文件系统的具体的路径然后绑定 PVC 使用，这是一种办法，但是当需要的 PV 数量多了就会非常繁琐， 对于此使用场景我们可以使用社区的 nfs-client-provisioner 项目来实现动态创建 CFS 文件系统中的子路径，接下来我们来介绍下如何在 TKE 中使用nfs-client-provisioner
操作步骤
1，准备CFS实例
使用cfs-csi插件 创建或者通过cfs 控制台创建，更或者是自建NFS文件系统实例
2，安装部署
官方提供两种安装方式， helm 安装 和 手动部署 YAML 安装，这里我们提供两种的安装方式,
3，helm安装（helm客户端安装可以参考另外文档）安装 helm3 参考 helm 安装
1，可以根据需求修改指定参数后部署：
$ helm repo add nfs-subdir-external-provisioner https://kubernetes-sigs.github.io/nfs-subdir-external-provisioner/
# helm repo list #查看添加helm repo仓库情况
NAME URL
tcr-chen-helm https://tcr-chen.tencentcloudcr.com/chartrepo/helm
nfs-subdir-external-provisioner https://kubernetes-sigs.github.io/nfs-subdir-external-provisioner/
# 【可选步骤，可以将helm chart 包下载下来 上传到自己的镜像仓库，方便后续其他集群安装】
# 下载 helm chart 文件至本地目录，查看可以指定的 values 选项（可选）
$ helm pull nfs-subdir-external-provisioner/nfs-subdir-external-provisioner --untar
$ tar zcvf nfs-subdir-external-provisioner-1.0.0.tgz nfs-subdir-external-provisioner/
$ helm cm-push nfs-subdir-external-provisioner-1.0.0.tgz tcr-chen-helm
# 默认镜像是国外镜像，可以下载下来上传到自己的镜像仓库里面
$ docker pull k8s.gcr.io/sig-storage/nfs-subdir-external-provisioner:v4.0.2
$ docker tag 932b0bface75 tcr-chen.tencentcloudcr.com/docker/nfs-subdir-external-provisioner:v4.0.2
$ docker push tcr-chen.tencentcloudcr.com/docker/nfs-subdir-external-provisioner:v4.0.2
# 使用类似下面命令安装 nfs-subdir-external-provisioner 资源
# helm install nfs-subdir-external-provisioner nfs-subdir-external-provisioner/nfs-subdir-external-provisioner \
--set nfs.server=10.2.2.45 \
--set nfs.path=/tke_path \
--set image.repository=tcr-chen.tencentcloudcr.com/docker/nfs-subdir-external-provisioner \
--set image.tag=v4.0.2
#出现如下提示 表示安装成功
NAME: nfs-subdir-external-provisioner
LAST DEPLOYED: Tue Feb 15 13:22:03 2022
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: Non
2，配置使用 CFS 文件系统子目录的 PVC 。
使用上一步部署的nfs-subdir-external-provisioner动态创建存储卷。
部署后会默认生成一个存储类资源，默认存储类名是"nfs-client"(也可以在部署时自定义指定)，如下：
# kubectl get sc | grep nfs-client
nfs-client cluster.local/nfs-subdir-external-provisioner 4m8s
3，使用上面的StorageClass创建PVC
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: test-claim
spec:
storageClassName: nfs-client
accessModes:
- ReadWriteMany
resources:
requests:
storage: 1Mi
# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
test-claim Bound pvc-c0ee60d2-a0b8-4902-a4c1-5145f78e5606 1Mi RWX nfs-client 11s
会自动创建命令，命令命名方式是 namespace-pvc名称-pv名称
4，创建测试POD 挂载对应PVC
kind: Pod
apiVersion: v1
metadata:
name: test-pod
spec:
containers:
- name: test-pod
image: busybox:stable
command:
- "/bin/sh"
args:
- "-c"
- "touch /mnt/SUCCESS && exit 0 || exit 1"
volumeMounts:
- name: nfs-pvc
mountPath: "/mnt"
restartPolicy: "Never"
volumes:
- name: nfs-pvc
persistentVolumeClaim:
claimName: test-claim

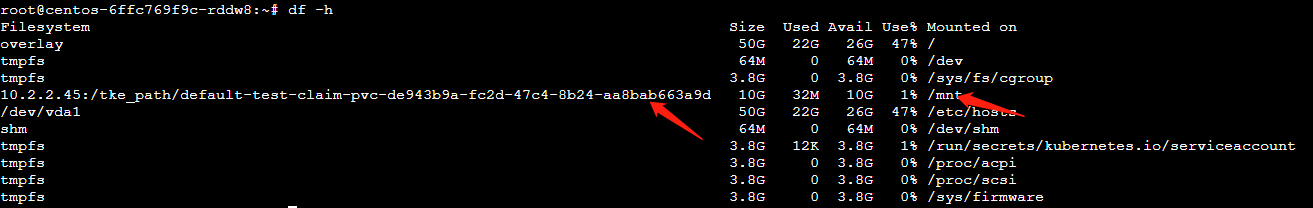

# pwd
/localfolder/tke_path/default-test-claim-pvc-c0ee60d2-a0b8-4902-a4c1-5145f78e5606
# ls -lrt
total 0
-rw-r--r-- 1 root root 0 Feb 15 13:47 SUCCESS
4，手动部署 YAML 安装
1，创建账号ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
name: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: nfs-client-provisioner-runner
rules:
- apiGroups: [""]
resources: ["nodes"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
resources: ["persistentvolumeclaims"]
verbs: ["get", "list", "watch", "update"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["events"]
verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: run-nfs-client-provisioner
subjects:
- kind: ServiceAccount
name: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
roleRef:
kind: ClusterRole
name: nfs-client-provisioner-runner
apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: leader-locking-nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
rules:
- apiGroups: [""]
resources: ["endpoints"]
verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: leader-locking-nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
subjects:
- kind: ServiceAccount
name: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
roleRef:
kind: Role
name: leader-locking-nfs-client-provisioner
apiGroup: rbac.authorization.k8s.io
2，部署应用
apiVersion: apps/v1
kind: Deployment
metadata:
name: nfs-client-provisioner
labels:
app: nfs-client-provisioner
# replace with namespace where provisioner is deployed
namespace: default
spec:
replicas: 1
strategy:
type: Recreate
selector:
matchLabels:
app: nfs-client-provisioner
template:
metadata:
labels:
app: nfs-client-provisioner
spec:
serviceAccountName: nfs-client-provisioner
containers:
- name: nfs-client-provisioner
image: tcr-chen.tencentcloudcr.com/docker/nfs-subdir-external-provisioner:v4.0.2
volumeMounts:
- name: nfs-client-root
mountPath: /persistentvolumes
env:
- name: PROVISIONER_NAME
value: cluster.local/nfs-subdir-external-provisioner
- name: NFS_SERVER
value: 10.2.2.45
- name: NFS_PATH
value: /tke_path
volumes:
- name: nfs-client-root
nfs:
server: 10.2.2.45
path: /tke_path
3，创建storageClass
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: nfs-client
provisioner: cluster.local/nfs-subdir-external-provisioner # or choose another name, must match deployment's env PROVISIONER_NAME'
parameters:
archiveOnDelete: "false"
4，创建PVC和POD验证
十，使用自建NFS挂载
TKE使用自建NFS挂载POD
NFS基本配置：
[root@VM-55-9-tlinux ~]# showmount -e 172.16.55.9
Export list for 172.16.55.9:
/data/saas 172.16.0.0/16,10.0.0.0/8
[root@VM-55-9-tlinux ~]# cat /etc/exports
/data/saas 10.0.0.0/8(rw,async,no_root_squash)
/data/saas 172.16.0.0/16(rw,async,no_root_squash)
[root@VM-55-9-tlinux ~]# ls -l /data/saas/
total 4
drwxr-xr-x 3 root root 4096 Apr 19 18:42 mysql_docker
[root@VM-55-9-tlinux /data/saas/mysql_docker/data]# ls -lrt
total 0
部署yaml文件
apiVersion: apps/v1
kind: StatefulSet
metadata:
labels:
k8s-app: mysql-nfs
qcloud-app: mysql-nfs
name: mysql-nfs
namespace: cjweichen
spec:
replicas: 1
selector:
matchLabels:
k8s-app: mysql-nfs
qcloud-app: mysql-nfs
serviceName: ""
template:
metadata:
labels:
k8s-app: mysql-nfs
qcloud-app: mysql-nfs
spec:
containers:
- env:
- name: MYSQL_ROOT_PASSWORD
value: "12345"
image: mysql:5.7
imagePullPolicy: IfNotPresent
name: mysql
resources: {}
volumeMounts:
- mountPath: /var/lib/mysql
name: nfs-vol
subPath: mysql_docker/data
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: qcloudregistrykey
volumes:
- name: nfs-vol
nfs:
path: /data/saas
server: 172.16.55.9

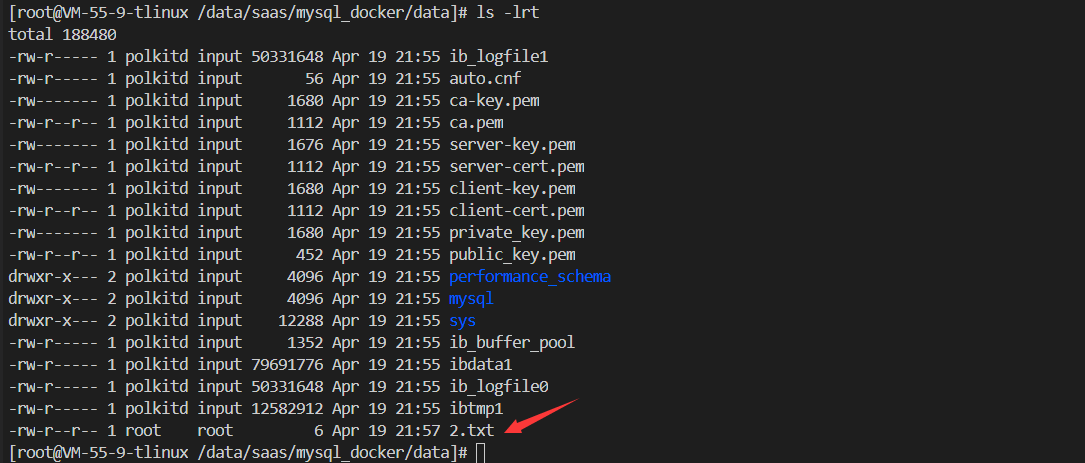

对应目录下也有相应文件

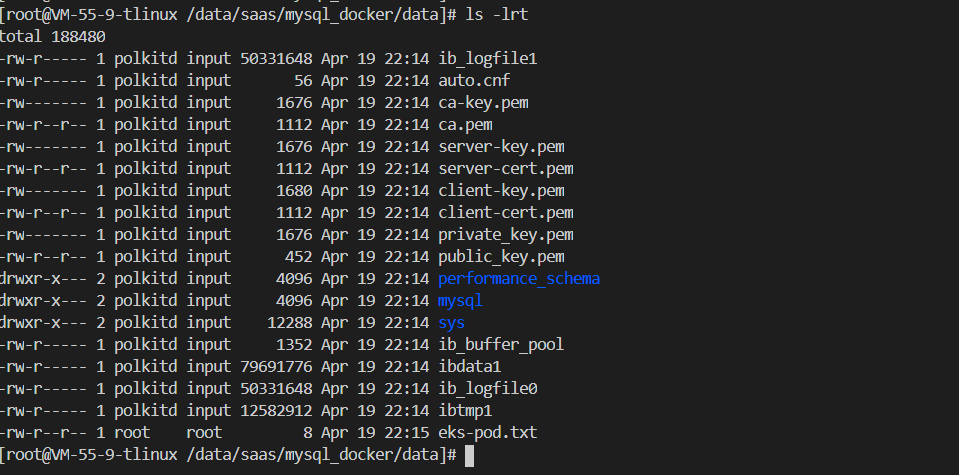

EKS使用自建NFS部署mysql
相同nfs客户端
apiVersion: apps/v1
kind: StatefulSet
metadata:
labels:
k8s-app: mysql-nfs-eks
qcloud-app: mysql-nfs-eks
name: mysql-nfs-eks
namespace: default
spec:
replicas: 1
selector:
matchLabels:
k8s-app: mysql-nfs-eks
qcloud-app: mysql-nfs-eks
serviceName: ""
template:
metadata:
labels:
k8s-app: mysql-nfs-eks
qcloud-app: mysql-nfs-eks
spec:
containers:
- env:
- name: MYSQL_ROOT_PASSWORD
value: "12345"
image: mysql:5.7
imagePullPolicy: IfNotPresent
name: mysql
resources: {}
volumeMounts:
- mountPath: /var/lib/mysql
name: nfs-vol
subPath: mysql_docker/data
dnsPolicy: ClusterFirst
imagePullSecrets:
- name: qcloudregistrykey
volumes:
- name: nfs-vol
nfs:
path: /data/saas
server: 172.16.55.9
十一CFS类型PVC删除策略
1，StorageClass 回收策略是reclaimPolicy: Delete
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: cfs
parameters:
pgroupid: pgroup-jsgxkfjl
storagetype: SD
subnetid: subnet-qtlzyxzt
vers: "3"
vpcid: vpc-a19fq3f0
zone: ap-shanghai-2
provisioner: com.tencent.cloud.csi.cfs
reclaimPolicy: Delete
volumeBindingMode: Immediate
2，使用这个StorageClass 自动创建CFS类型pvc
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: v-cjwiechen-cfs
namespace: cjweichen
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
storageClassName: cfs
volumeMode: Filesystem
会自动创建pv和一个CFS实例
3，创建POD并且挂载，这个时候去删除对应的pvc，会提示该pvc上时候操作的删除，待POD删除时候才删除pvc
如果StorageClass 回收策略是reclaimPolicy: Delete，会自动删除pv 和PV对应的 cfs实例的（测试验证过）
4，创建成功收，手动去修改PV的保留策略（控制台方式修改，编辑yaml文件）

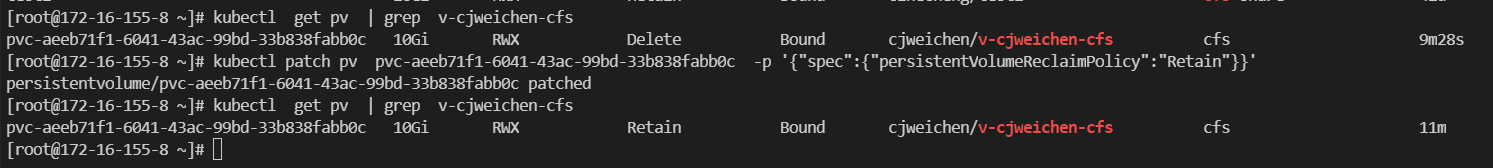

4.1，命令方式修改
选择你的 PersistentVolumes 中的一个并更改它的回收策略： 这里的 `` 是你选择的 PersistentVolume 的名字
kubectl patch pv <your-pv-name> -p '{"spec":{"persistentVolumeReclaimPolicy":"Retain"}}'
4.2，验证你选择的 PersistentVolume 拥有正确的策略： 如上
5，然后去删除pvc，对应的pv不会删除，为Released状态
6，然后删除PV，看下cfs实例是否被删除，验证对应的cfs实例 不会被删除
